Product model：
Subclassification：Straight line wire drawing machine
Number of visitors：58
Release date：2026-02-25
Product introduction：

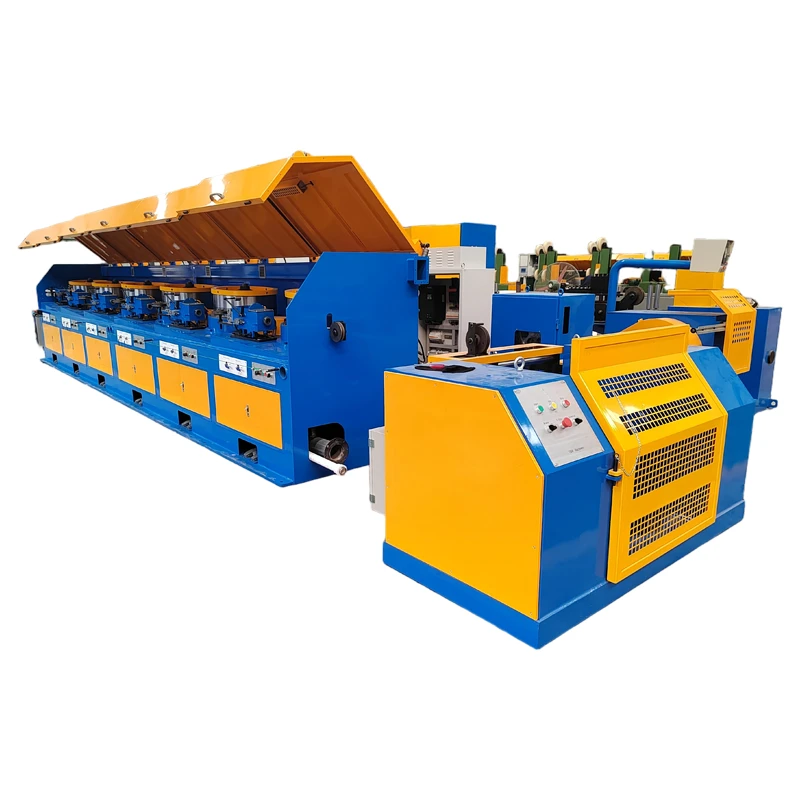

The straight line wire drawing machine produced by our company is a high-performance permanent magnet synchronous motor wire drawing machine developed and produced by
absorbing the advanced technology at home and abroad. The existing products are in series:
LZ350 、LZ400 、LZ450 、LZ560 、LZ600 、LZ630 、LZ710 、LZ800 、LZ900 、LZ1200 and other specifications, suitable for drawing All kinds of metal wires below 16mm.
Equipment application field: the equipment has a wide range of applications, and can be
used for steel wire: (high, medium and low carbon steel wire, stainless steel wire, prestressed steel wire, cord steel wire, spring steel wire, etc.); Welding materials: welding rods, gas
shielded welding wires, flux cored welding wires, submerged arc welding wires, aluminum alloy welding wires and other metal wires shall be used for wire extension processing.
Equipment advantages: driven by variable frequency motor or servo direct drive motor;
OTO assembly line; Rotate the mold box to save the mold; Automatic powder mixing; The belt drive is convenient for maintenance; Long life of WC sprayed wire wheel; Arbitrary jump;
Degreasing and polishing treatment; One button start stop remote control, Industry 4.0 intelligent factory information interface; High speed and efficiency.
Number | LZ350 | LZ400 | LZ450 | LZ500 | LZ560 | LZ600 | LZ700 | LZ900 | LZ1200 |
Diameter of Capstan | 350 | 400 | 450 | 500 | 560 | 600 | 700 | 900 | 1200 |
Max Wire inlet tensile strength | ~1300 | ||||||||
Drawing time | 2~12 | 2~12 | 2~12 | 2~12 | 2~13 | 2~9 | 2~9 | 2~9 | 2~9 |
Max wire inlet dia | 3.6 | 4.2 | 5 | 5.5 | 6.5 | 8 | 10 | 14 | 16 |
Min Wire outlet dia (mm) | 0.6 | 0.75 | 1 | 1.2 | 1.35 | 1.6 | 2.2 | 3 | 3 |
Max designing speed (m/s) | ~20 | ~20 | ~18 | ~18 | ~15 | ~12 | ~10 | ~8 | ~6 |
Power (Kw) | 7.5~15 | 7.5~22 | 11~37 | 22~55 | 22~55 | 45~75 | 45~90 | 90~132 | 90~160 |
Drum | Cast steel is sprayed with tungsten carbide (or hardfacing wear-resistant alloy) with hardness HRC>60 and good wear resistance. Narrow slot cooling and annular air cooling are adopted. | ||||||||
Drive mode | LZ350~LZ560 wire drawing machines are driven by a single-stage or two-stage strong narrow V-belt, and the drive is quiet. LZ450~1200 transmission system adopts one level strong narrow V-belt+one level hard tooth surface gear pair | ||||||||
transmission, with high coincidence, quiet transmission and low noise; It can also be driven by a single-stage strong narrow V-belt+standard hardened gear box. | |||||||||
Servo direct drive system | The permanent magnet synchronous motor is directly driven without belt and gear box. | ||||||||
Die Box | It is water-cooled, adjustable from top to bottom, left to right, and equipped with wire pressing device to reduce wire vibration. Optional rotary Die box, pressure Die box and Die box ash mixing device. | ||||||||
Tension tuning device | Cylinder is used for tuning roller balance, and non-contact sensor is used for tension detection. | ||||||||
Control mode | PLC full digital control, touch screen man-machine interface. | ||||||||
Pay-off mode | Pay off stand or pay off machine. | ||||||||
Take up mode | Take Up machine or Trunk type wire take-up machine | ||||||||
Control section | Inovance/ Siemens PLC program control, Kunlun touch screen, Turck sensor, Inovance/ Siemens inverter , Other low-voltage apparatus adopt Schneider Equipped with touch screen can monitor and set various process parameters and fault display at any time | ||||||||
