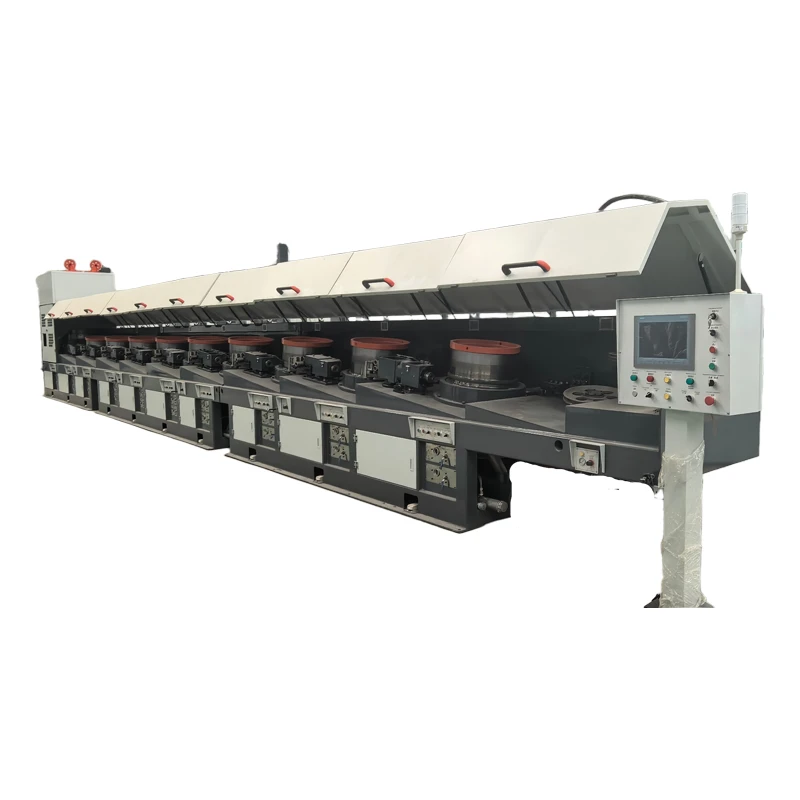

High Medium Low carbon wire production line

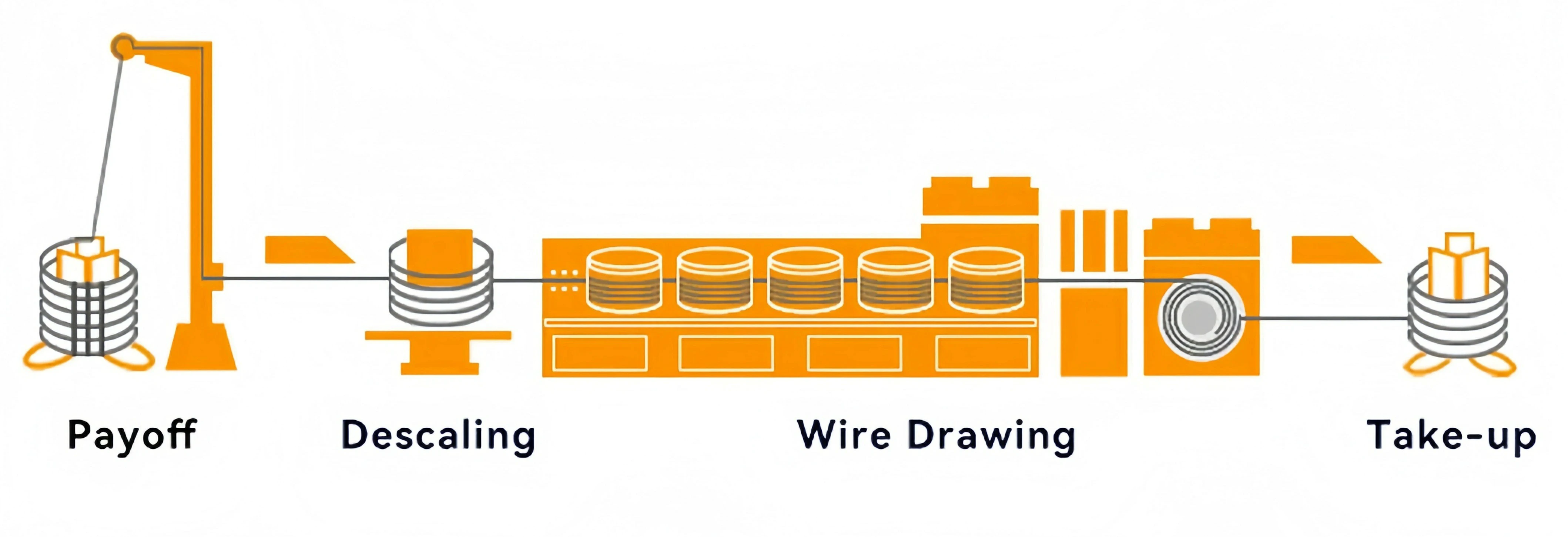

1)   Process flow:

(1) Duck-billed wire pay-off machine→ Mechanical    descaler→    LZ(500-1200)Straight line wire drawing machine→ Tension stand→SG800-1250 or SB600Trunk type wire take-up machine or bobbin take up machine

2)     LZ (500 -1200) technical parameters

(1) Incoming wire diameter:Φ 6.5- Φ 14mm

(2) Incoming line strength: 550-1250Mpa

(3) Incoming wire material: 1008 、1006 、1020 、1025 、1040 、1060 、1070 、1080 、82B

(4) Outlet diameter: Φ 6.5- Φ 2 mm, Φ 14- Φ 5mm

(5) Drawing speed: maximum 18m/s, normal use5- 16m/s

(6) Motor power: 220-1200KW (take-up machine)

(7) Water gas pressure: 1) water pressure>0.2Mpa 2) air pressure>0.6Mpa

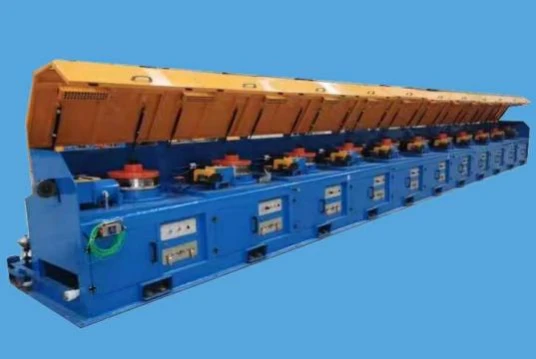

3)   LZ11/400 Technical Parameters

(1) Wire inlet dia: ≤ Φ 3.0 mm

(2) Wire inlet strength: ≤ 1200Mpa

(3) Wire material: 1008, 1006, 1020, 1025

(4) Wire outlet diameter: Φ 0.7- Φ 1.2mm

(5) Drawing speed: up to 30 m/s, 25 m/s for normal use

(6) Motor power: 165KW (wire drawing machine)+22KW (take-up machine)

(7) Water gas pressure: 1) water pressure>0.2Mpa 2) air pressure>0.6Mpa
